**Key Features & Benefits**

 **1. Self-Activating Protection**

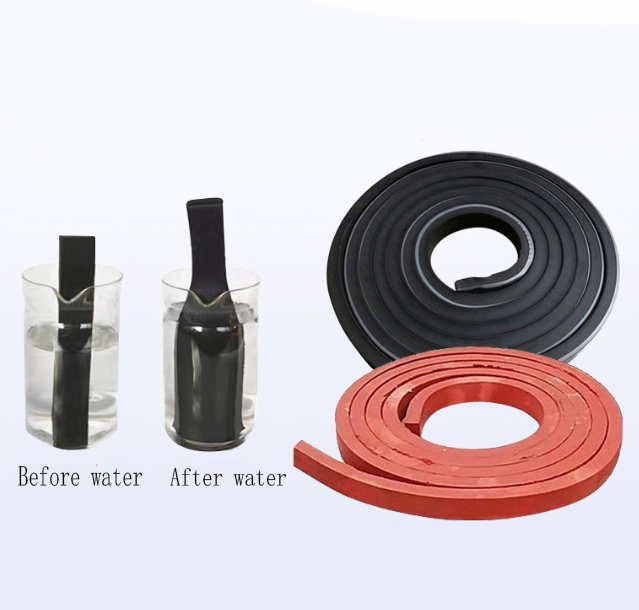

- **Hydrophilic Core Technology**: Absorbs water and expands **300-500%** in volume

- **Directional Swelling**: Engineered to expand **only toward water sources**

- **Instant Response**: Activates within **minutes** of moisture contact

**2. Superior Material Science**

- **Base Materials**:

  - **Bentonite-Based**: Natural clay for eco-friendly projects

  - **Polymer Hybrid**: Synthetic blends for aggressive chemical environments

- **Controlled Expansion Rate**: Prevents over-swelling damage

 **3. Unmatched Versatility**

- **Pre-Construction**: Installed in poured joints before concrete setting

- **Retrofit Applications**: Injected into leaking cracks in existing structures

- **Complex Geometries**: Flexible strips conform to irregular surfaces

 **4. Performance Assurance**

- **Self-Healing**: Re-seals after minor structural movements

- **Chemical Resistance**: pH stable in **2-13 range**

- **Longevity**: Remains active for **30+ years**

---

### **Technical Specifications**

| **Property**               | **Specification** |

|----------------------------|-------------------|

| Expansion Rate             | 150-600% (custom formulations available) |

| Swelling Pressure          | 0.15-0.4 MPa      |

| Activation Time            | 5-90 minutes (water-dependent) |

| Temperature Resistance     | -20°C to +70°C    |

---

 **Application Scenarios**

 **New Construction**

- **Basement Joints**: Prevents capillary water rise

- **Tunnel Segments**: Seals between precast concrete rings

- **Water Tanks**: Gasket-free penetration sealing

**Repair & Maintenance**

- **Crack Injection**: Fluid-grade expanding resins

- **Pipe Boots**: Water-activated wrap systems

- **Curtain Wall Joints**: Non-destructive sealing

 **Special Environments**

- **Subway Systems**: Vibration-resistant formulations

- **Mining Infrastructure**: High-pressure shaft sealing

- **Green Buildings**: VOC-free compositions

---

### **Installation Advantages**

✔ **No Special Tools Required** – Peel-and-stick or pour-in-place options

✔ **Immediate Water Contact Allowed** – No curing delay

✔ **Visual Verification** – Color-changing indicators confirm activation

**Installation Process:**

1. **Surface Prep**: Clean and dampen substrate

2. **Product Placement**: Adhere strip or inject compound

3. **Activation**: Water triggers expansion (test spray recommended)

4. **Verification**: Check uniform swelling

---

**Why Choose Expanding Waterstops?**

◉ **Eliminates Human Error** – Automatic activation ensures complete sealing

◉ **Reduces Labor Costs** – 70% faster installation vs traditional methods

◉ **Future-Proofs Structures** – Continues to adapt to new cracks

**Industry-Leading Innovations:**

- **Smart Sensors**: Wireless swelling monitors

- **Bio-Based Formulas**: Sustainable alternatives

- **Pressure-Regulating**: Dynamic load adaptation
