Basic structure of rubber conveyor belt

Typical rubber conveyor belt consists of three parts:

Top & Bottom Rubber Cover)

Upper cover layer: bear material wear

Lower cover layer: contact with rollers, protect skeleton material

Material can choose wear-resistant, heat-resistant, oil-resistant, acid-resistant and alkali-resistant rubber

Skeleton layer (Carcass):

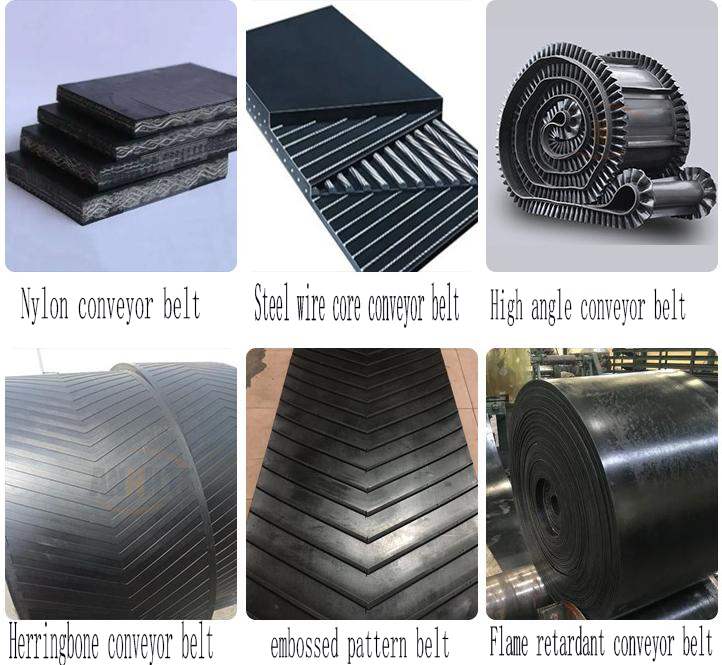

Provide strength and support, common materials include: EP canvas (polyester + nylon), NN canvas (nylon + nylon), wire rope (steel belt)

Rubber adhesive layer: connect cover rubber and skeleton layer to ensure firm structure and good peeling resistance

Suggestions for rubber conveyor belt selection

Clear the type of conveyed material (whether it is abrasive, corrosive, high temperature, etc.)

Determine the conveying environment (whether it needs fire protection, high temperature resistance, corrosion resistance, etc.)

Determine parameters such as bandwidth, number of layers, length, speed, etc.

Prefer aging-resistant materials (extend service life and reduce maintenance costs)

Consider overall economic efficiency (cost-effectiveness and replacement frequency)

Rubber conveyor belts are an indispensable core component for industrial material transportation. With the diversification of working conditions, the requirements for its wear resistance, heat resistance, flame retardancy, oil resistance and other properties are getting higher and higher. Reasonable selection and standardized use will greatly improve production efficiency and reduce maintenance costs.
